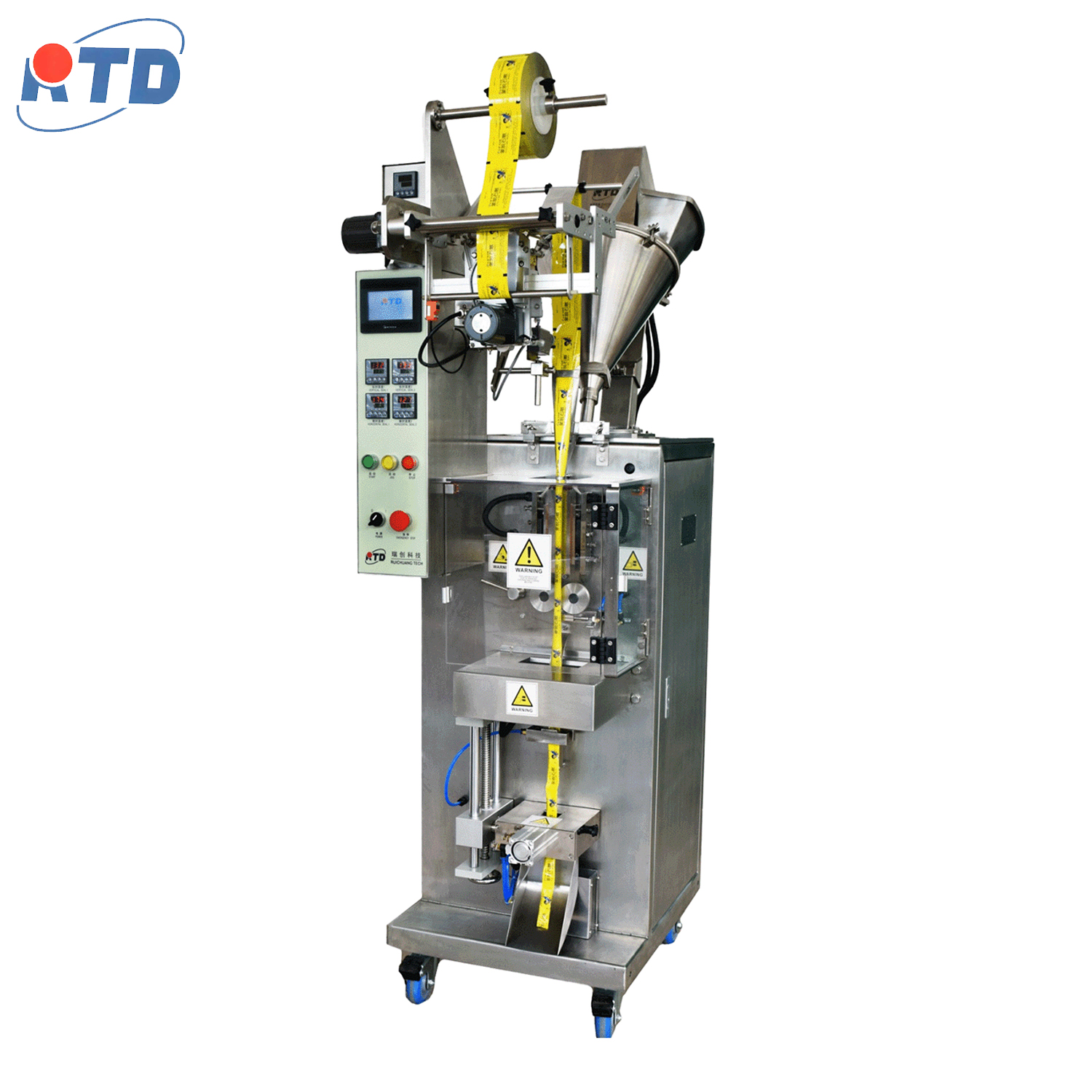

DXDF50IIF automatic intelligent back seal powder packaging machine
advanced touch-type man-machine interface, real-time monitoring of the production status of the equipment, setting and adjusting the operating parameters.
High-precision screw filling metering method, customers can intelligently adjust the packaging weight on the touch screen.
Modular design can quickly and quickly change different molds, metering parts and cutters according to user requirements, so that the same equipment can quickly switch different packaging and cutting requirements (such as
High-precision screw filling metering method, customers can intelligently adjust the packaging weight on the touch screen.
Modular design can quickly and quickly change different molds, metering parts and cutters according to user requirements, so that the same equipment can quickly switch different packaging and cutting requirements (such as
| Model | DXDF50IIF |
| Packing speed (bags/min) | 30-60 (depending on packing materials and specifications) |
| metering range (ml) | 1-50 |
| bag size (mm) | length: 70-160 width: 17-92 |
| sealing method/grain | Back Seal/Straight Stripe, Straight Reticulation, Oblique Reticulation |
| cutting method |
Flat cutting, zigzag cutting, dotted line (zigzag) fixed package continuous cutting, fillet cutting, special-shaped cutting |
| Maximum power consumption (W) | 1250 |
| supply voltage (V) | 220 |
| (Kg) | 230 |
| external dimension (mm) | 600(L)X760(W)X2050(H) |
| selection | ribbon/laser coding machine, vacuum feeder, checkweigher, finished conveyor belt |
| Packaging Materials |
Paper/Polyethylene |
