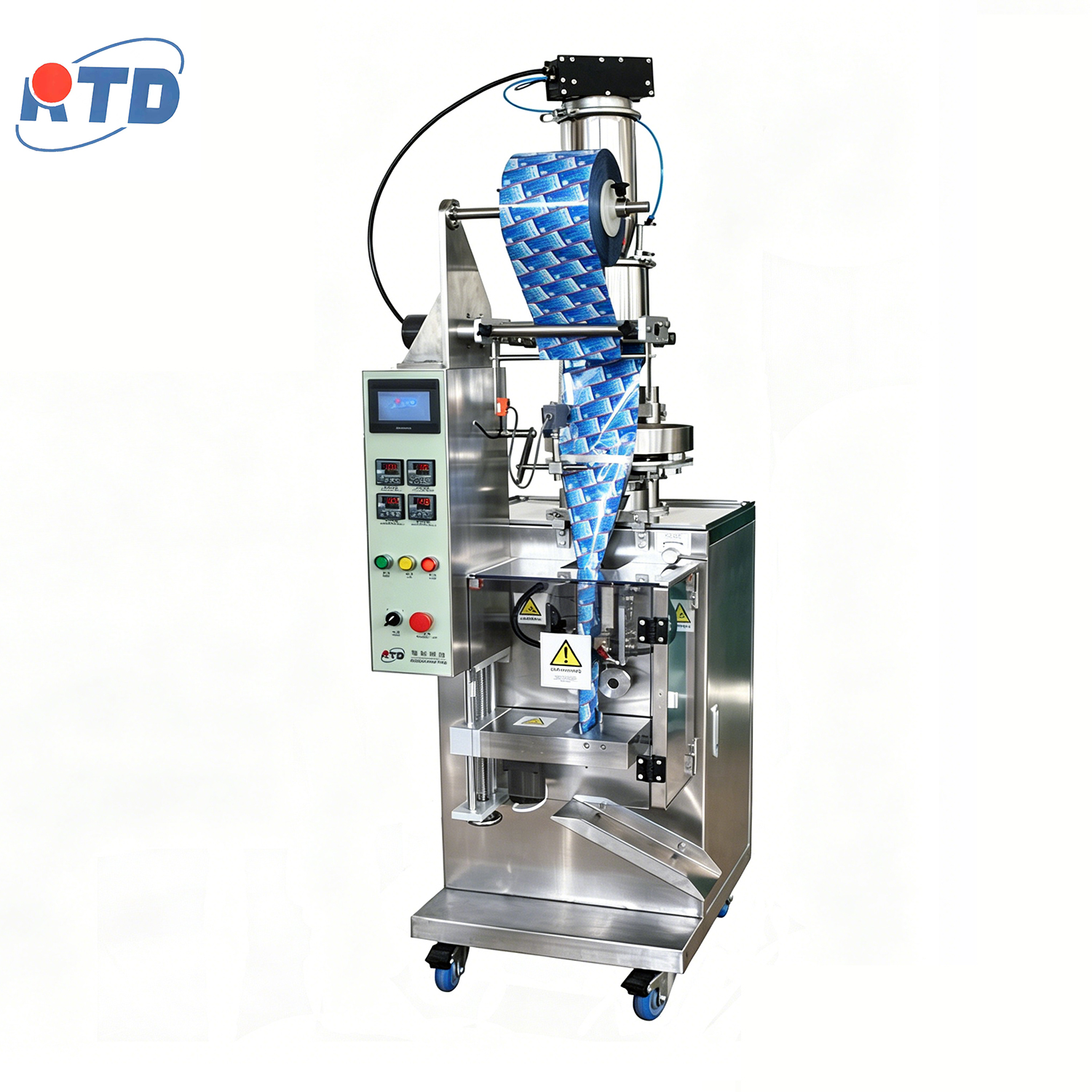

DXDK50F automatic intelligent granule packing machine
advanced touch-type man-machine interface, real-time monitoring of the production status of the equipment, setting and adjusting the operating parameters.
The data loading adjustment system, based on the material parameters input by the customer, uses the motor to change the stroke of the upper and lower measuring cups through PLC operation, so as to automatically adjust the packaging weight at high speed.
Using frequency conversion speed control system, fast packaging speed, low noise, stable p
The data loading adjustment system, based on the material parameters input by the customer, uses the motor to change the stroke of the upper and lower measuring cups through PLC operation, so as to automatically adjust the packaging weight at high speed.
Using frequency conversion speed control system, fast packaging speed, low noise, stable p
| Model | DXDK50F |
| Packing speed (bags/min) | 50-80 (depending on packaging materials and packaging specifications) |
| metering range (ml) | 1-50 |
| bag size (mm) | length: 40-120 width: 35-85 |
| sealing method/grain | Three-sided seal, four-sided seal/straight stripe, straight mesh, oblique mesh |
| cutting method | Flat cutting, zigzag cutting, dotted line (zigzag) fixed package continuous cutting, fillet cutting |
| Maximum power consumption (W) | 1050 |
| supply voltage (V) | 220 |
| (Kg) | 215 |
| Dimensions (mm) | 600(L)X760(W)X1650(H) |
| selection | ribbon/laser coding machine, vacuum feeder, checkweigher, finished conveyor belt |
| Packaging Materials |
Paper/Polyethylene |
