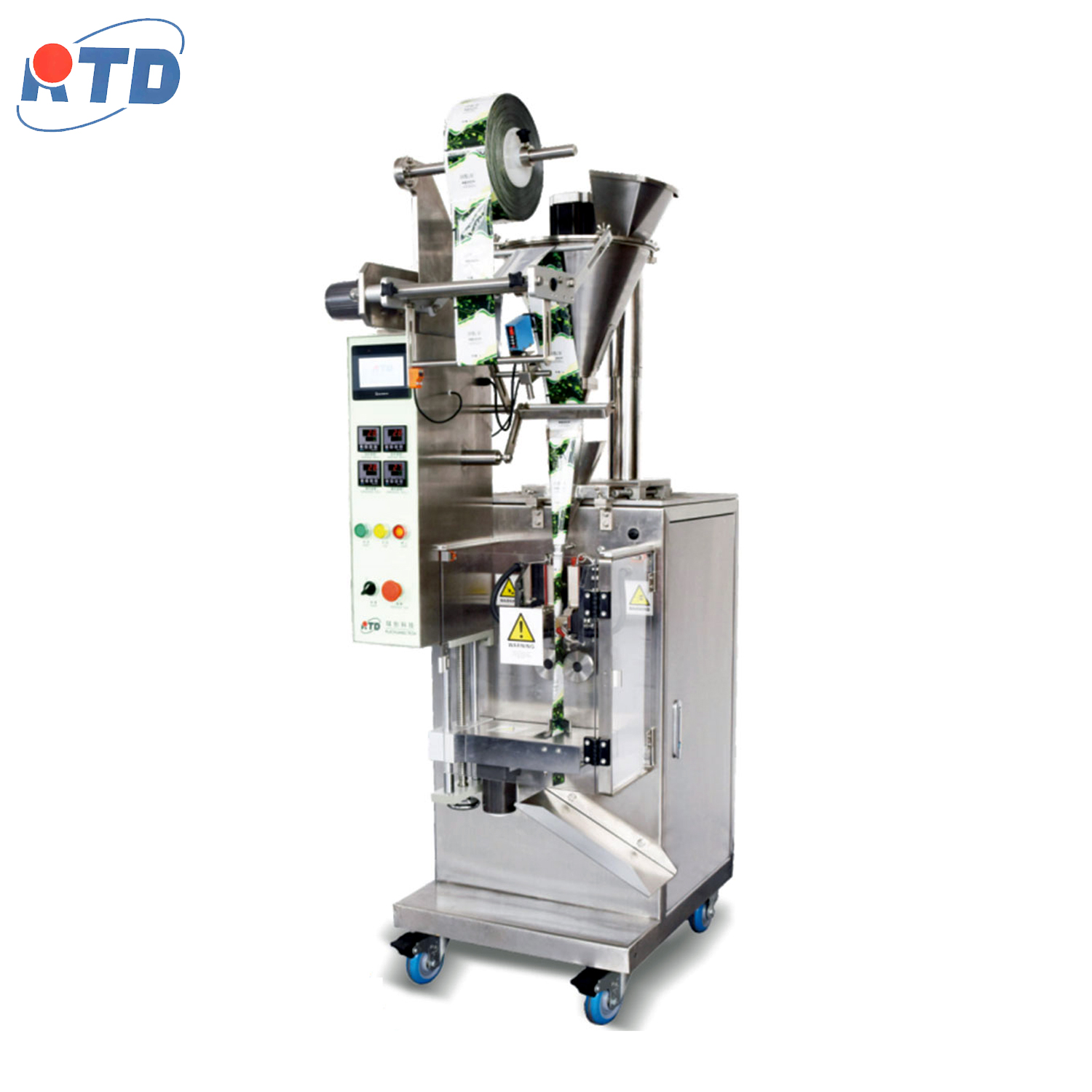

DXDF50G automatic intelligent powder vertical packaging machine
advanced touch-type man-machine interface, real-time monitoring of the production status of the equipment, setting and adjusting the operating parameters.
High-precision customized screw filling metering method, customers can intelligently adjust the packaging weight on the touch screen.
Vertical blanking, more accurate trace
The modular design can quickly and quickly change different molds, metering parts and cutters according to user requirements, so that the same equipment can quickly switch
High-precision customized screw filling metering method, customers can intelligently adjust the packaging weight on the touch screen.
Vertical blanking, more accurate trace
The modular design can quickly and quickly change different molds, metering parts and cutters according to user requirements, so that the same equipment can quickly switch
| Model | DXDF50G |
| Packing speed (bags/min) | 40-60 (depending on packaging materials and packaging specifications) |
| metering range (ml) | 0.2-5 |
| bag size (mm) | length: 40-120 width: 35-85 |
| sealing method/grain | Three-sided seal, four-sided seal/straight stripe, straight mesh, oblique mesh |
| cutting method | Flat cutting, zigzag cutting, dotted line (zigzag) fixed package continuous cutting, fillet cutting |
| Maximum power consumption (W) | 1250 |
| supply voltage (V) | 220 |
| (Kg) | 230 |
| external dimension (mm) | 600(L)X760(W)X1650(H) |
| selection | ribbon/laser coding machine, vacuum feeder, checkweigher, finished conveyor belt |
| Packaging Materials |
Paper/Polyethylene |
