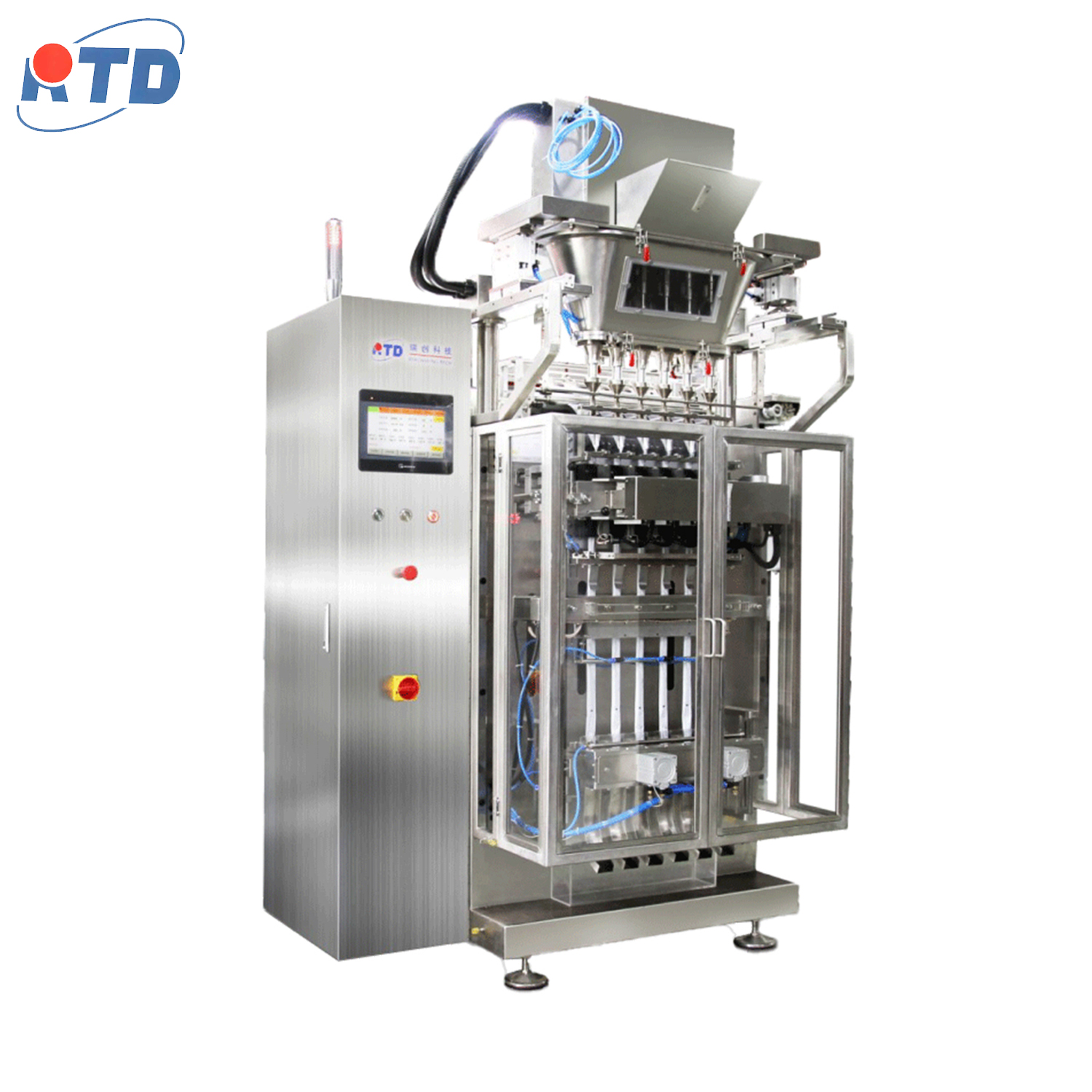

DXDMF Ⅱ-280-5 Fully Intelligent Multi-column Back Seal Powder Packaging Machine (Small Quantity)
DXDMF Ⅱ-280-5 Fully Intelligent Multi-column Back Seal Powder Packaging Machine (Small Quantity)
Simple operation: advanced and friendly man-machine interface, easy to operate, easy to learn, easy to understand, easy to use, through the touch screen input common parameter settings, you can complete the operation of the equipment.
Servo-controlled blanking: PLC precisely controls and drives the blanking servo motor to realize blanking with small loading. Each blanking channel is independently controlled, does not interfere with each other, can freely adjust the blanking weight of each channe
Servo-controlled blanking: PLC precisely controls and drives the blanking servo motor to realize blanking with small loading. Each blanking channel is independently controlled, does not interfere with each other, can freely adjust the blanking weight of each channe
| Model | DXDMFII-280-5 |
| columns | 5 |
|
Packing speed (bag/min/column) |
25-40 |
| metering range (ml) | 0.2-5 |
| film width (mm) | 280 |
| bag size (mm) |
length 80-100 width 20 |
| sealing method/grain | Back Seal/Straight Stripe, Straight Reticulation, Oblique Reticulation |
| cutting method | Flat cut/sawtooth cut, fillet cut, special-shaped cut |
| working voltage (V) | 220(50/60HZ) |
| gas supply pressure (Mpa) | 0.6-0.8 |
| Dimensions (mm) | 1000 (length) X1600 (width) X2150 (height) with hopper |
| selection | ribbon/laser coding machine, vacuum feeder, checkweigher, finished conveyor belt |
| Packaging Materials | paper/polyethylene cellophane/polyethylene aluminum foil/polyethylene polyester/polyethylene, polypropylene/polyethylene, nylon/polyethylene and other composite packaging materials |
