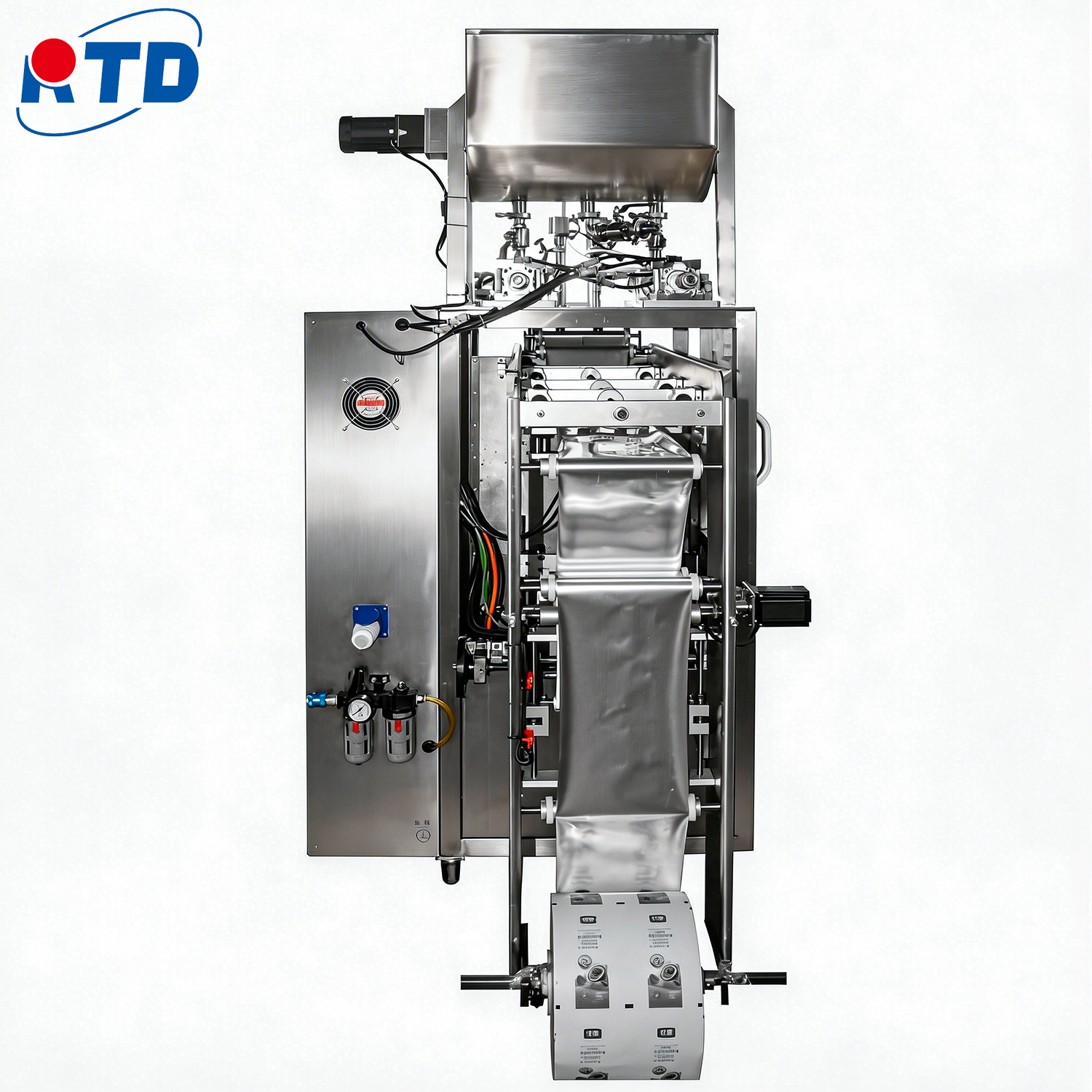

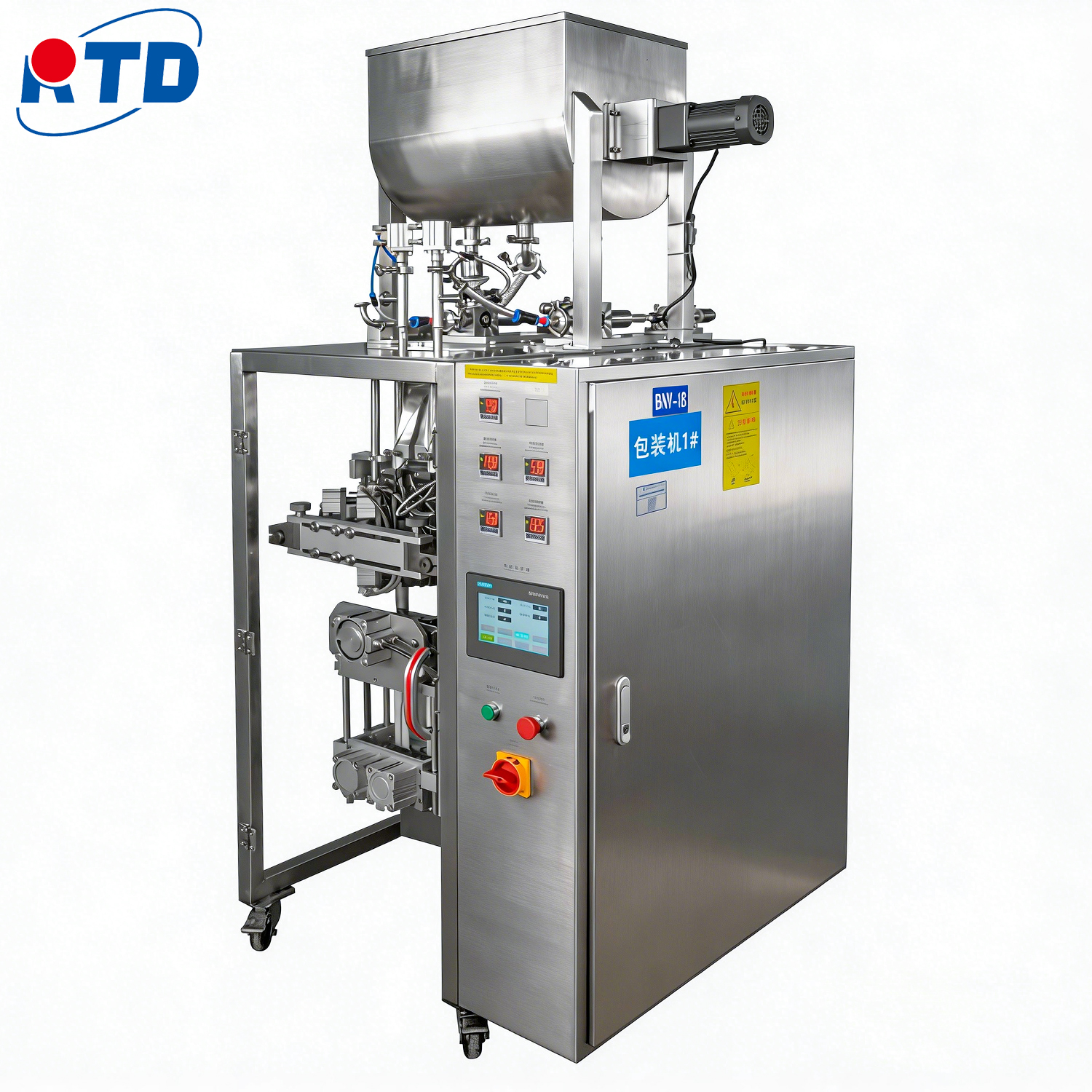

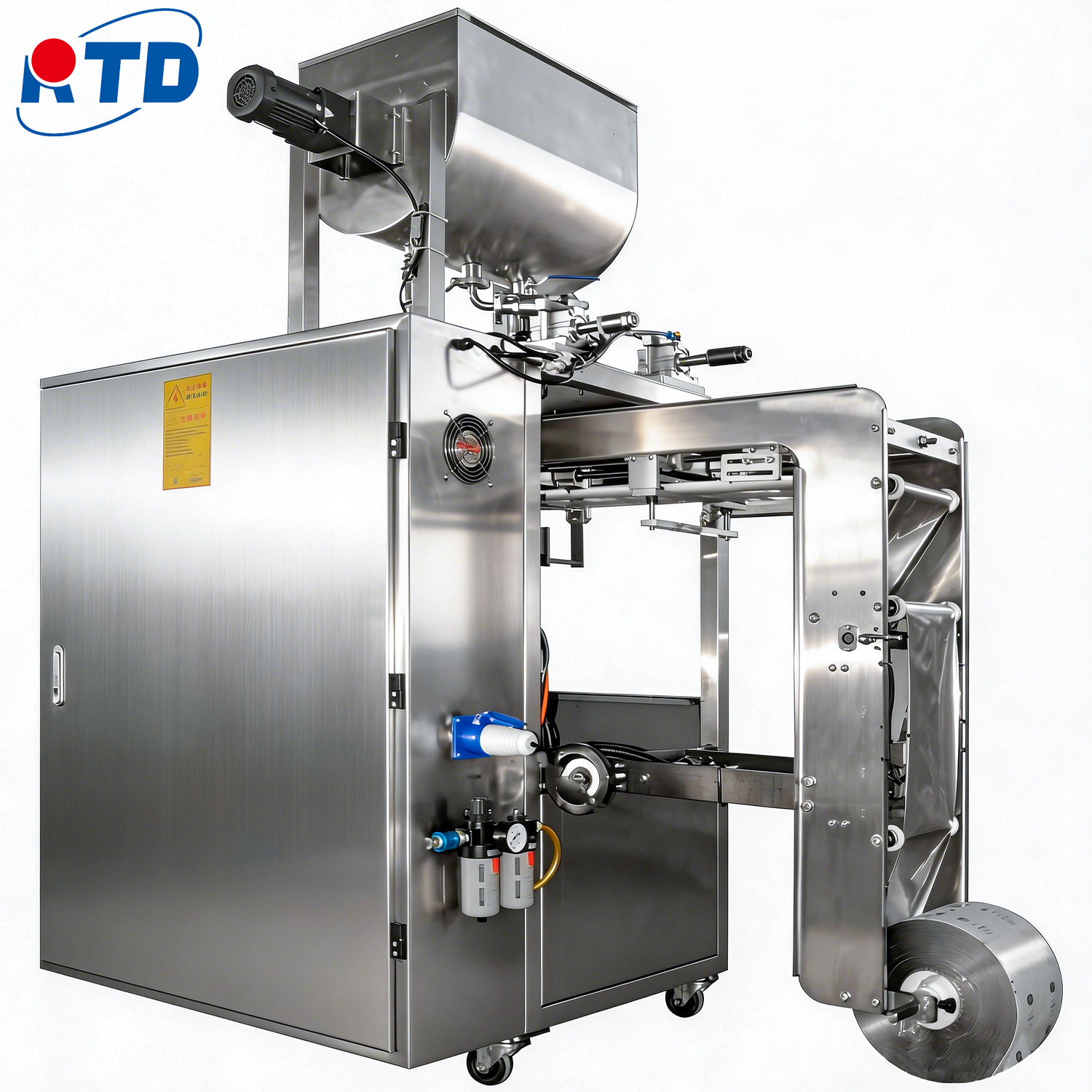

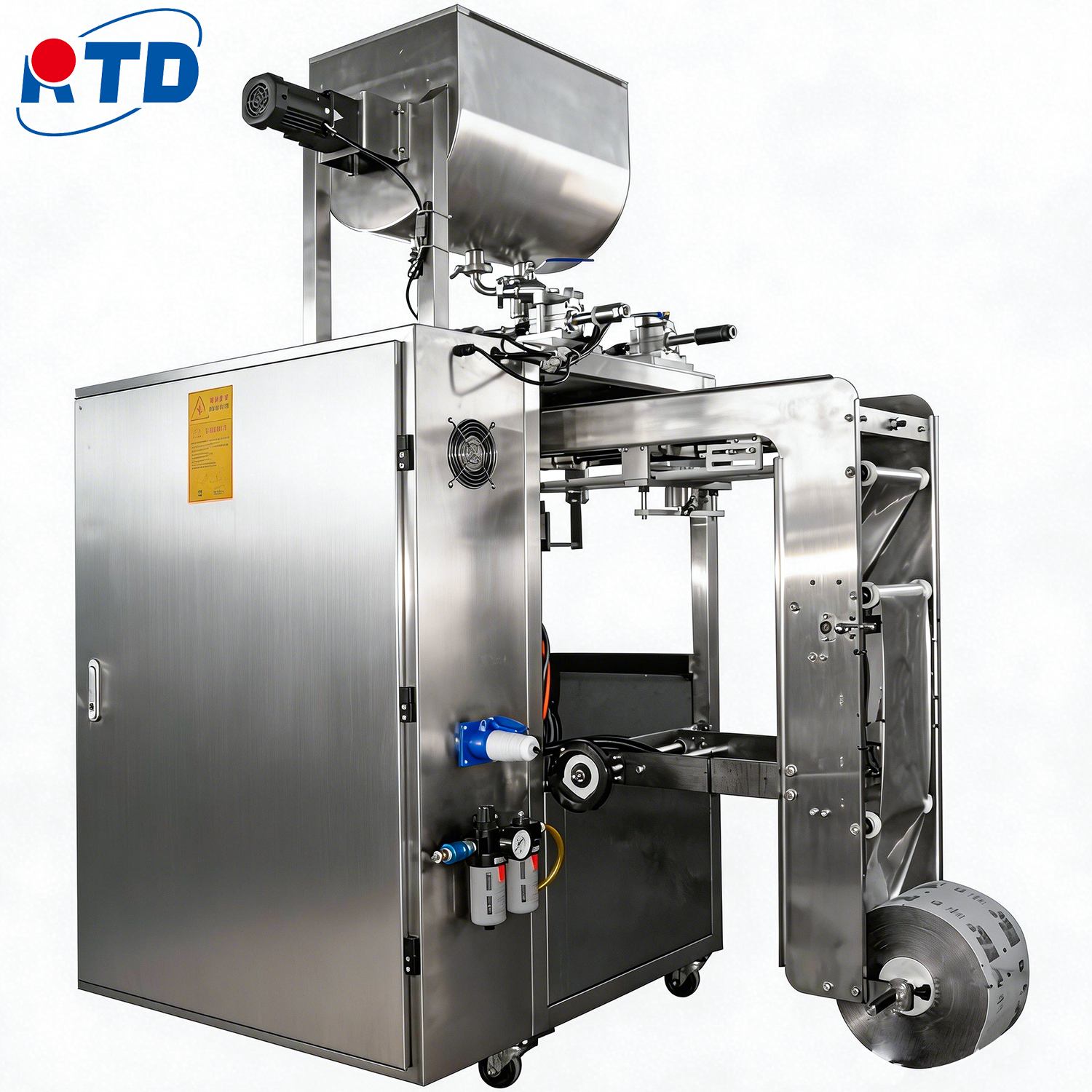

DXDL-88 special-shaped bag packing machine
Suitable for food, medicine, chemical industry, cosmetics industry in liquid, sauce and other items of special-shaped bag measurement packaging.
It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and can be configured to print batch numbers and bag shape customization according to customer requirements.
Touch screen operation, PLC control, servo motor control bag length, stable performance, convenient adjustment, accurate detection. Intelligent temperature
It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and can be configured to print batch numbers and bag shape customization according to customer requirements.
Touch screen operation, PLC control, servo motor control bag length, stable performance, convenient adjustment, accurate detection. Intelligent temperature
| Model | DXDL-88 special-shaped bag packing machine |
| metering range (ml) | 1-20 |
| bag size (mm) | length: 30-180 width: 20-80 |
| Packing speed (bags/min) | 20-35 |
| Dimensions (mm) | 958(L)X1300(W)X2417(H) |
| Overall weight (kg) | 720 |
| power | AC220V/50-60HZ/3KW |
| air source | 0.6Mpa |
| sealing method | back seal |
| Packaging Materials |
PE composite film, such as: pure aluminum, aluminum, etc.
|
